SMC MHZ2-20D
Description
Description

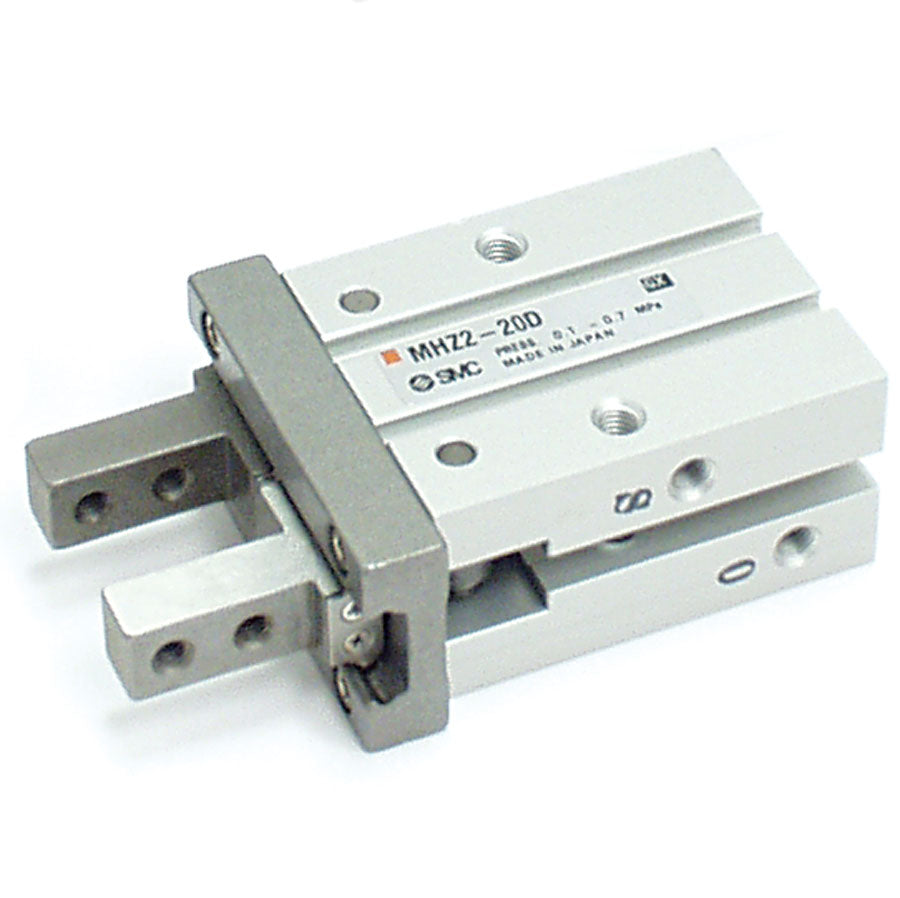

SMC MHZ2-20D
Gripper Parallel - Double-Acting, 2 Finger Standard
Spesification:
|
Bore diameter: |
20 mm |
|
Open width: |
26.3 mm |
|
Closed width: |
16.3 mm |
|
Gripper type: |
Parallel |
|
Piston action: |
Double-Acting |
|
Finger type: |
2 Finger Standard |
|
Holding force closed @ 72 psi: |
66 N |
|
Holding force open @ 72 psi: |
42 N |
|
Body option: |
Side Ported |
|
Port gender: |
Female |
|
Port size: |
M5 |
|
Port type: |
M5 ISO |
|
Gripping moment: |
14.8 ft-lbs |
|
Operating pressure range: |
15 psi to 102 psi |
|
Minimum operating pressure: |
15 psi |
|
Maximum operating pressure: |
102 psi |
|
Operating temperature range: |
14 °F to 140 °F |
|
Overall length: |
84.8 mm |
|
Overall width: |
50 mm |
|
Overall height: |
27.6 mm |
